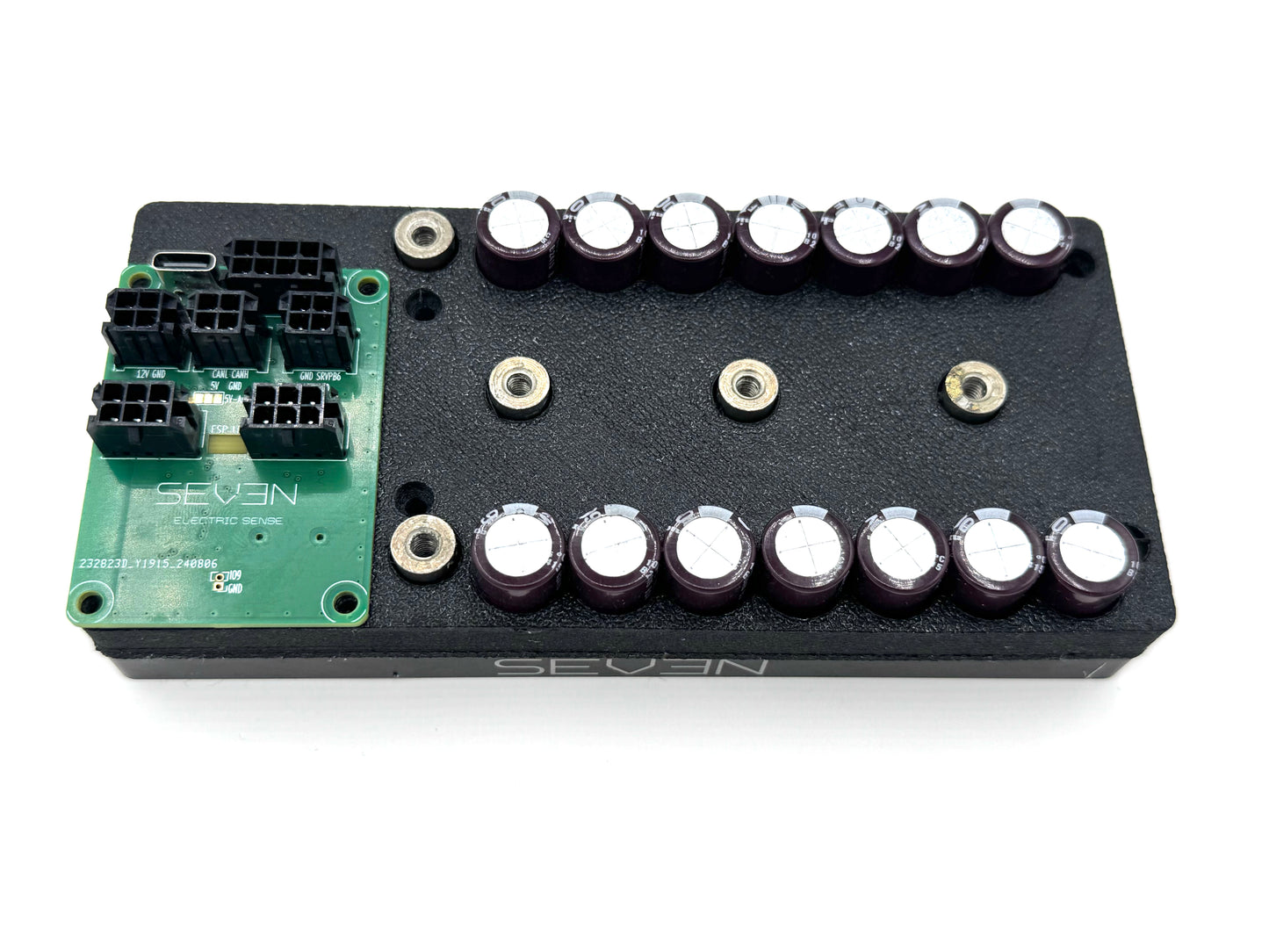

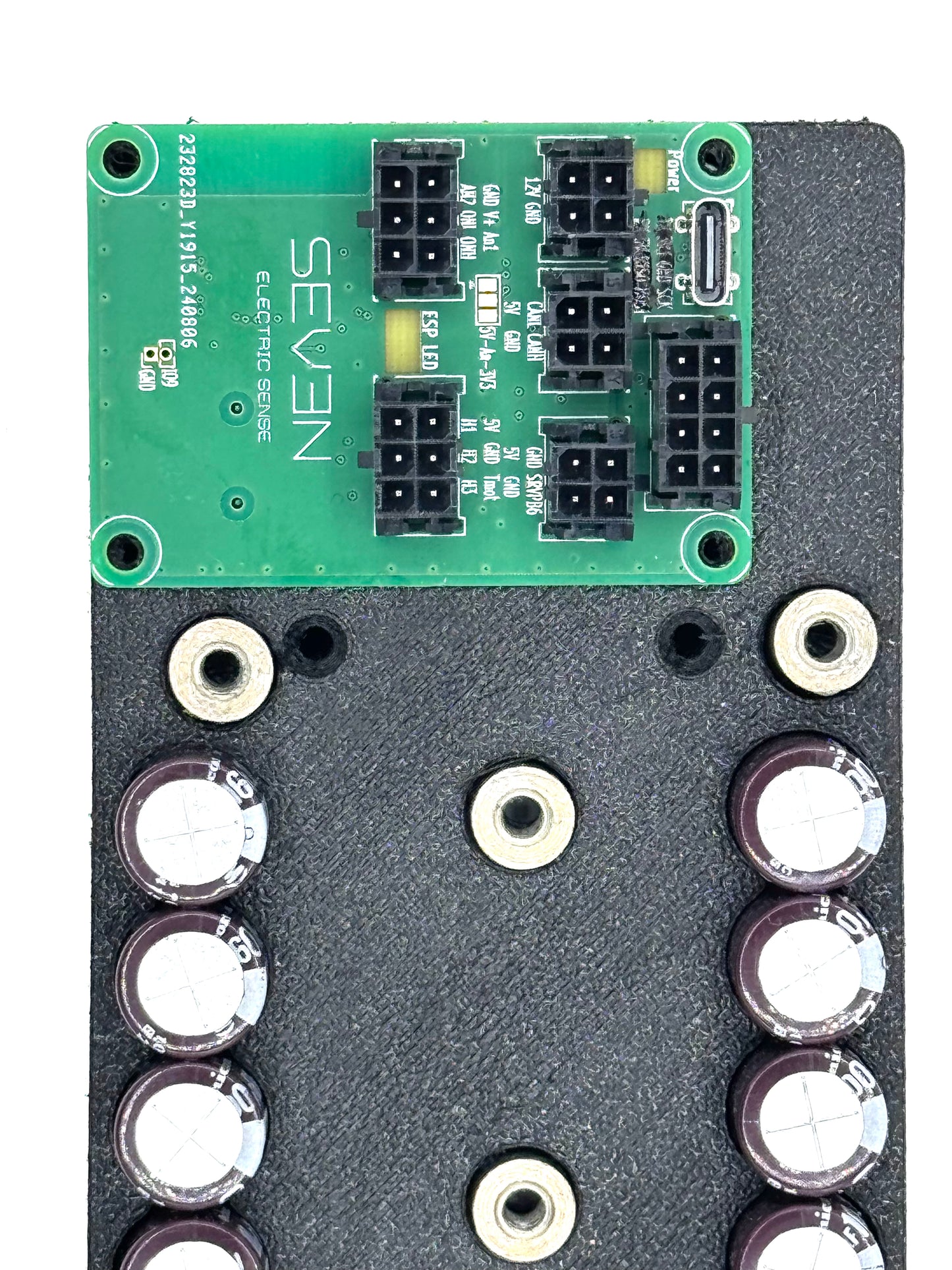

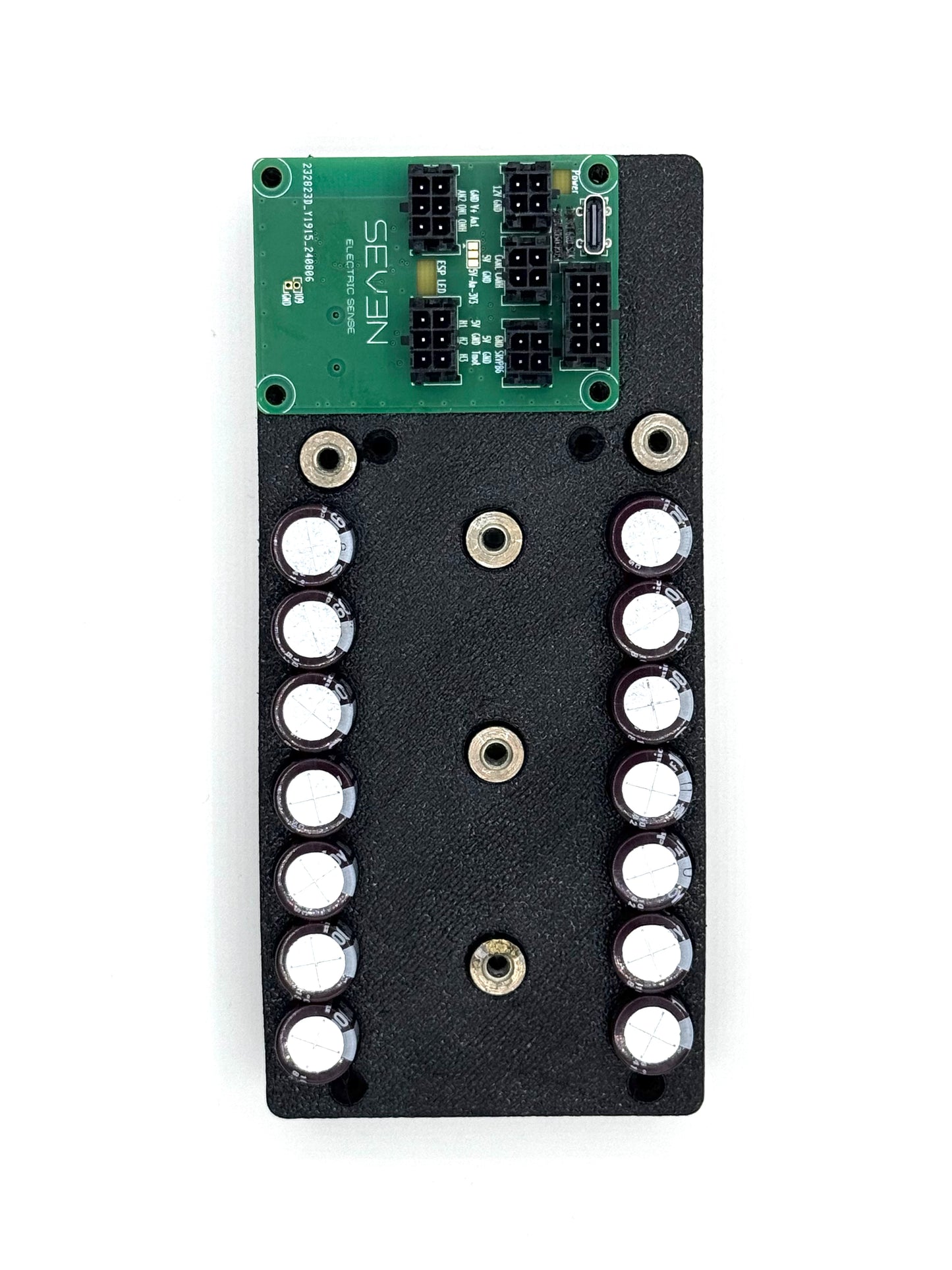

SEVEN 18 - 24S

Software Platform: VESC
Max Voltage: 24S (120V MOS with 150V DC-DC)
Min Voltage: 40V
Continuous Current: 400A with efficient liquid cooling
Burst Current (10s): Up to 700A (MOSFET dependent)
Max Set Point: 750A
Absolute Max Current: 850A
Current Measurement Capability: 1000A
Hardware Overcurrent Detection: Not available
Max ERPM: 150,000 (firmware-limited)
ADC Input: 0-3.3V, 5V tolerant
Max Operating Temperature: 75-95°C with rollback
MOSFET Configuration: 18 high-quality brand TOLL MOSFETs (voltage dependent)
Switching Frequency: Up to 25kHz, or 50kHz with VESC firmware at the rated cell count
Bluetooth Module: ESP32-C3, compatible with VESCTM Express
DC-DC Spike Resilience: 150V
Internal IMU: LSM6DS3
DC-DC Output: 12V, up to 4A continuous (supports LED headlight, indicators, water pump)
Thermal cutout
Short circuit protection up to 100V input (higher input voltage may cause DC-DC failure)
Shared 12V rail with ESC functions (avoid overloading)
PCB Dimensions: 65mm x 146mm
Case Dimensions: 69mm x 150mm
Input Wire Size: M4 screw terminal
Phase Wire Size: M4 screw terminal
Accessory Connector Type: Molex Microfit
Supported Throttle Types: ADC, PPM, CAN, UART inputs
