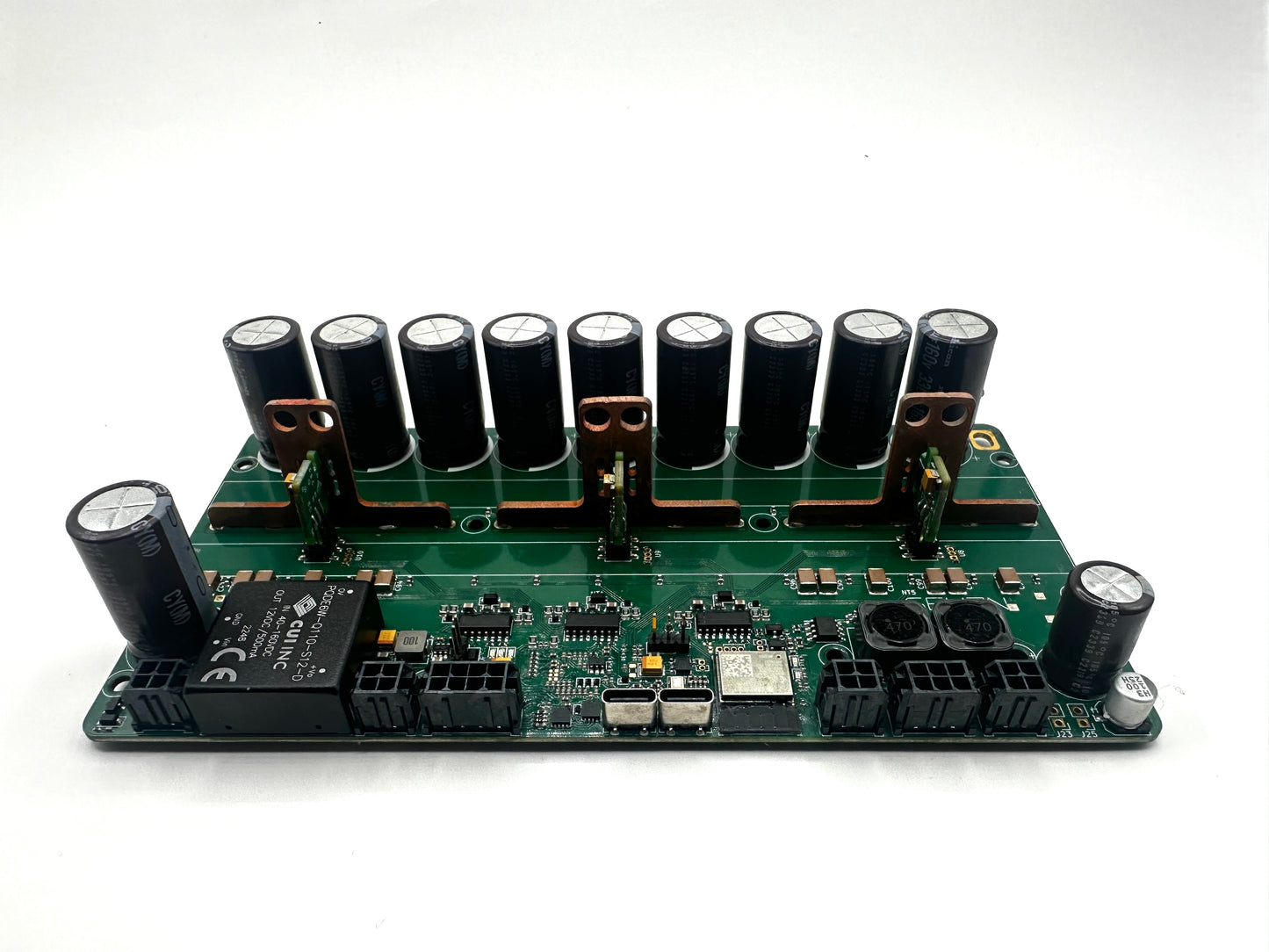

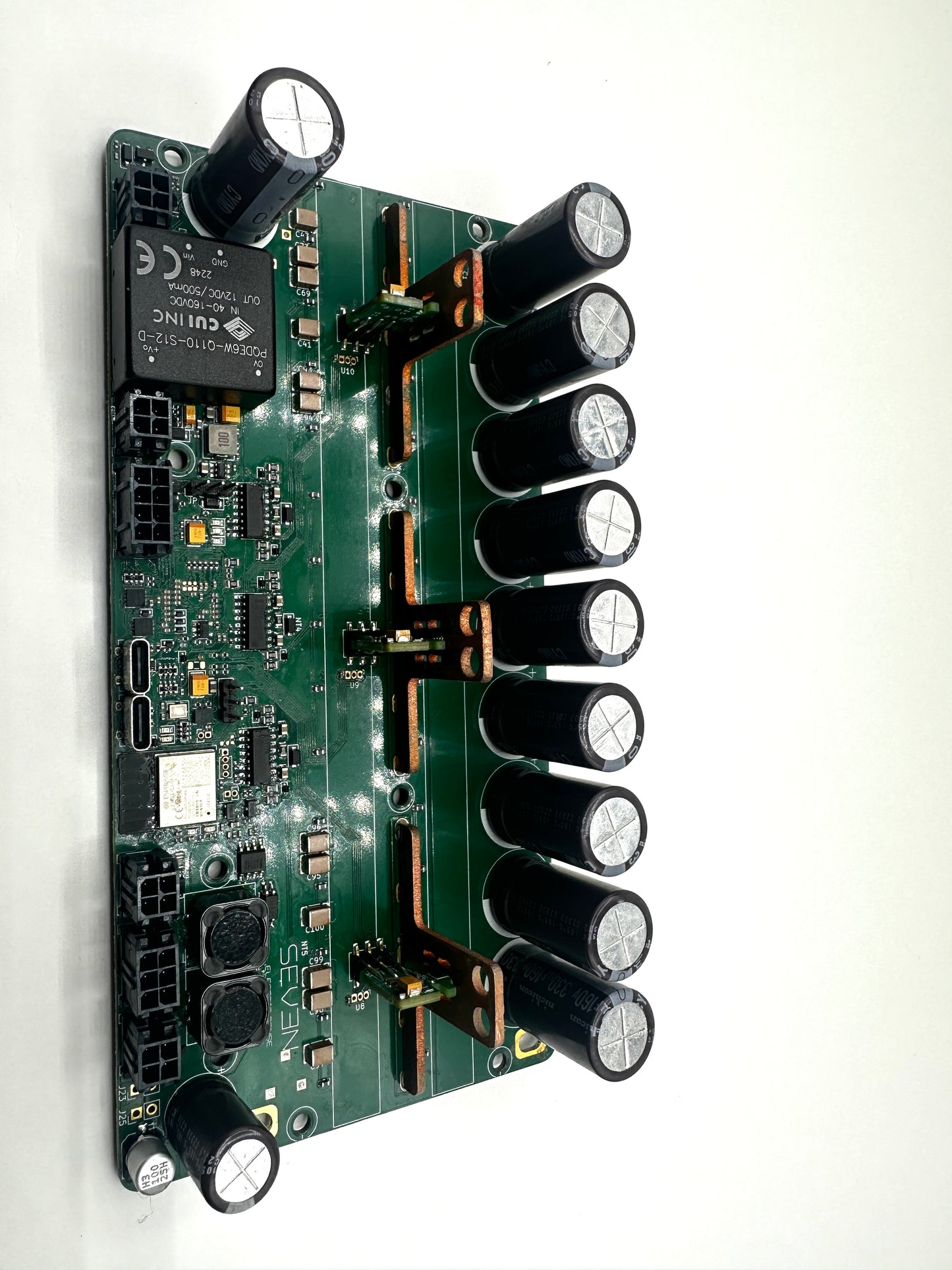

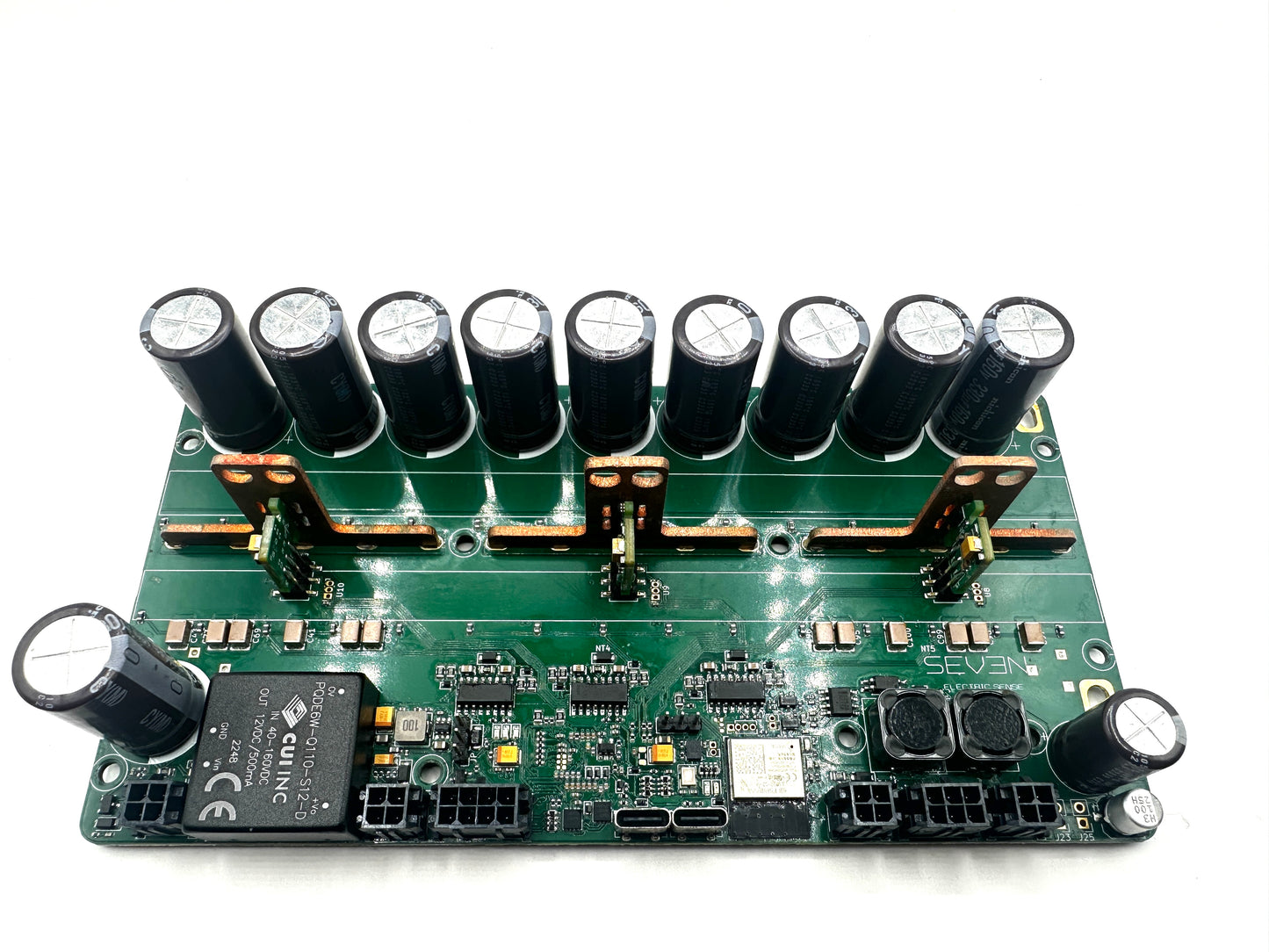

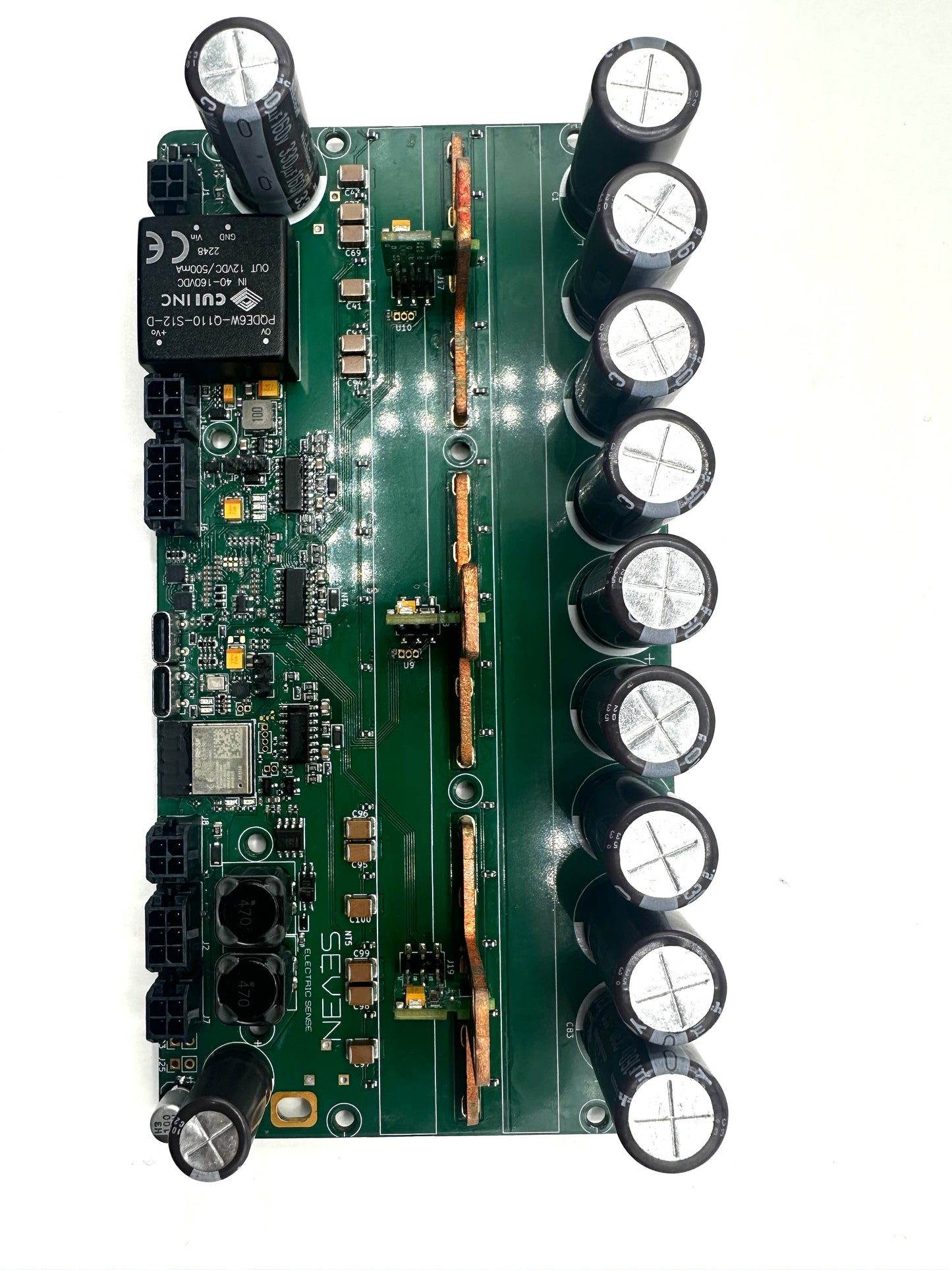

SEVEN 30
the ultimate controller for light electric vehicles: the most powerful and sophisticated controller per size on the market. Designed for electric motorcycles, boats, paragliders, jet ski’s, ATV’s etc. This compact powerhouse delivers unmatched performance and precision. Crafted with top-quality components, it ensures reliability and exceptional power, setting a new standard in electric mobility.
Software platform: VESC
Max voltage (V): 32s (160V DCDC)
Min voltage (V): 40V
Continuous current (A): 350 w/efficient cooling (liquid)
X Burst (10 secs) (A): 750
X Max set point (A): 800
X Absolute max (A): 1000
Current measurement capability (A): 1850 A
Hardware overcurrent detection: 2200A
Max ERPM: 150,000 Limited by firmware
ADC Input: 0-3.3V, 5V tolerant
Max operating Temp (C): 75-95C Rollback
Mosfet Number & Type: 30 Infineon TOLT (190/331/350A - voltage dependent).
Switching Frequency (kHz): up to 20kHz (40kHz with VESC firmware) @ rated cell count
Bluetooth Module: ESP32-C3 compatible with VESCTM Express
DC-DC spike resilience (V): 150
Imu internal: LSM6DS3
DCDC:
12V output up to 4A continuous (enough for LED headlight, indicators, water pump...
Thermal cutout
Short circuit protection up to 100V input (higher voltage input might result in DCDC failure)
Independent from ESC functions - overload/failure does not take down main controller!
Dimensions of PCB (mm): 96mm x 180mm
Dimension of case (mm): 100mm*185mm
Input wire size (awg): 6awg
Phase wire size (awg): 2x8awg
Accessory connector type: Molex Microfit
Supported Throttle Types: ADC, PPM, CAN, UART inputs
